Contrate and Pinion Gear Sets
Specific Gear Data:
| Contrate | ‘OS1’ | ‘CW’ | ‘FW’ | ‘CB’ |
| Type | Offset 1 | Contrate Width | Face Width | Contrate Bore |
| 1 | 0.157″ [3.99mm] | 0.162″ [4.11mm] | 0.079″ [2.00mm] | 2.0mm |
| 2 | 0.210″ [5.33mm] | 0.194″ [4.93mm] | not applicable | 2.0mm or 1/8″ |
Common Gear Data:
| ‘OS2’ – Offset 2 | 0.344″ [8.74mm] |
| ‘CD’ – Contrate Dia. | 0.460″ [11.68mm] |
| ‘BD’ – Boss Dia. | 0.187″ [4.75mm] |
| ‘PB’ – Pinion Bore | 1.0mm, 1.5mm or 2.0mm |
| ‘IP’ – Intergral Pinion (type 1 only) | 15teeth, 100DP and is moulded with the contrate. |
Additional Information/Options:
- These gear sets can be used as an alternative to the standard worm and wheel to drive at 90 dregrees.
- Both gear sets have a ratio of 2.9:1.
- The Contrate and Pinion are manufactured from injection moulded Nylatron GS.
- The type 1 contrate has a 2.0mm reamed bore in a Brass bush.
- All other bores are a push fit on to the indicated bore size.
- Product Specific Information/Options can be seen by clicking on the product description.
R.T.R. Gears
Mainline
Miscellaneous

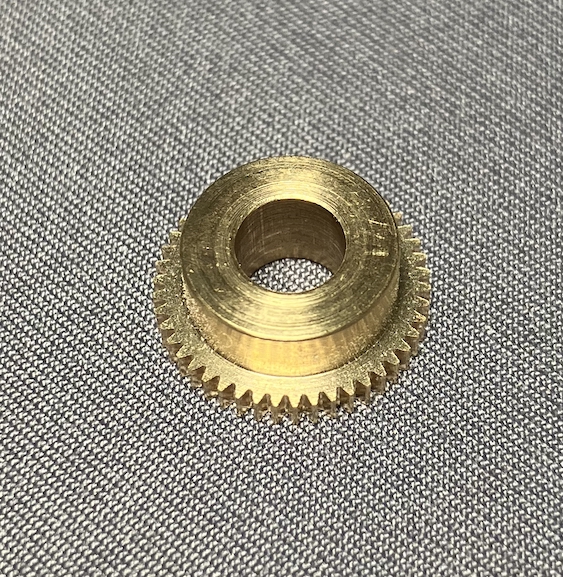

RG7 Final Drive Gear
Price shown is each
£12.00
Heljan (‘O’ gauge)
Heljan Class 26 & 33 Cluster Gear (‘O’ gauge)
Price shown is each
£25.00
Heljan Class 31 Cluster Gear (‘O’ gauge)
Price shown is each
£25.00
Heljan Class 35, 37, 47 & 55 Cluster Gear (‘O’ gauge)
Price shown is each
£25.00
Heljan Class 26, 33, 37, 42 & 47 Final Drive Gear (‘O’ gauge)
Price shown is each
£12.00
Bachmann

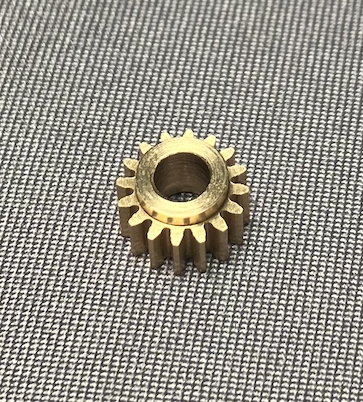

Bachmann 7F Final Drive Gear
Price shown is each
£12.00
Bachmann ‘C’ Class Final Drive Gear
Price shown is each
£12.00
Hornby

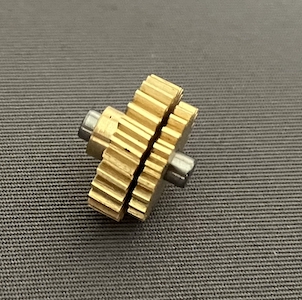

Hornby 4MT Cluster Gear
Price shown is each
£25.00
Hornby T9 Final Drive Gear
Price shown is each
£12.00

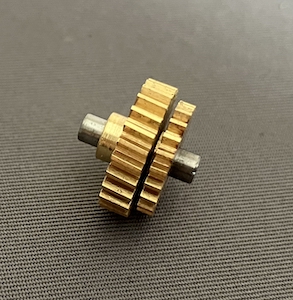

Hornby N15 Cluster Gear
Price shown is each
£25.00
Hornby ‘Battle of Britain’ Cluster Gear
Price shown is each
£25.00
Hornby ‘Merchant Navy’ Cluster Gear
Price shown is each
£25.00
Hornby ‘West Country’ Cluster Gear
Price shown is each
£25.00
Hornby 28xx Cluster Gear
Price shown is each
£25.00

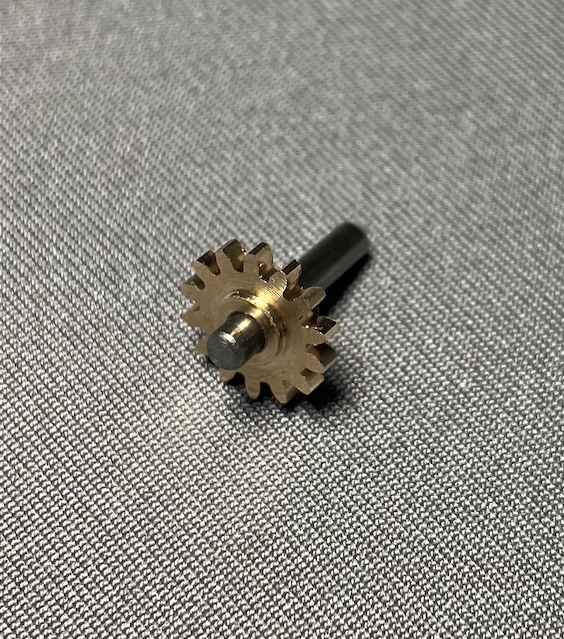

Hornby L1 Idler Gear
Price shown is each
£12.00
Hornby Class A4 Cluster Gear
Price shown is each
£25.00
Oxford Rail

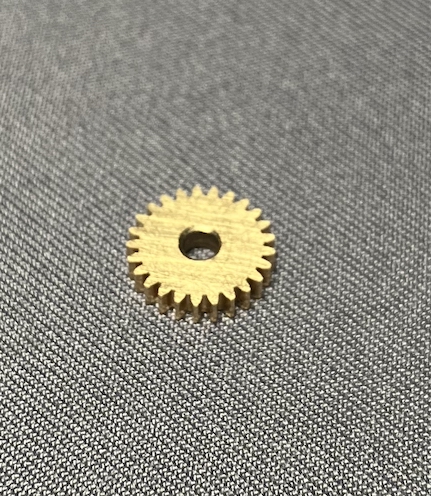

Oxford Rail ‘Janus’ Final Drive Gear
Price shown is each
£12.00
Heljan (‘OO’ gauge)

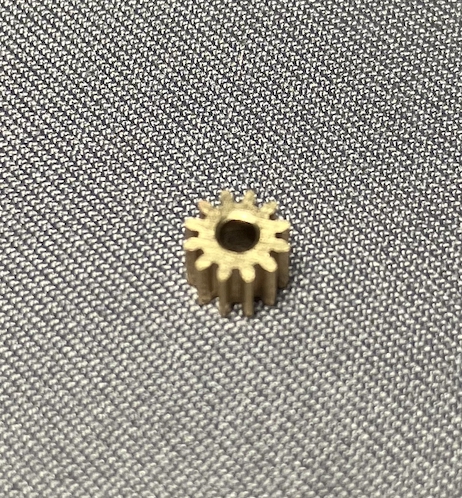

Heljan Class 104 Final Drive Gear
Price shown is each
£12.00
Heljan ‘Railbus’ Final Drive Gear
Price shown is each
£12.00

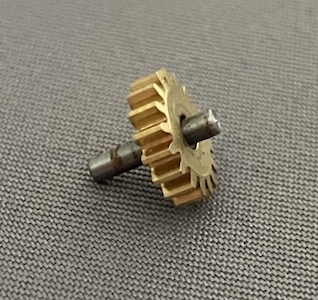

Heljan ‘Railbus’ Idler Gear
Price shown is each
£12.00
Dapol

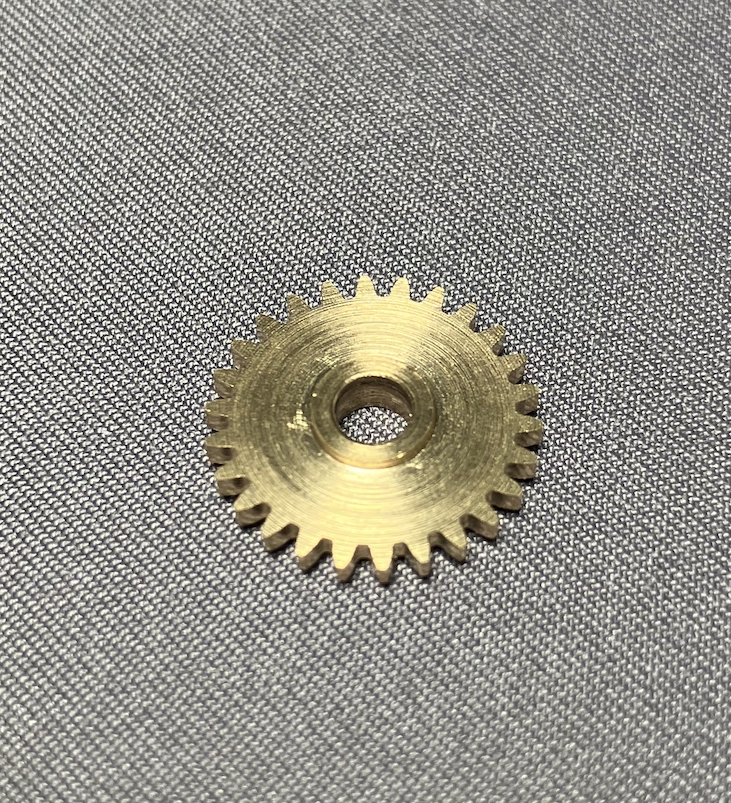

Dapol ‘County’ Final Drive Gear
Price shown is each
£12.00
Accurascale

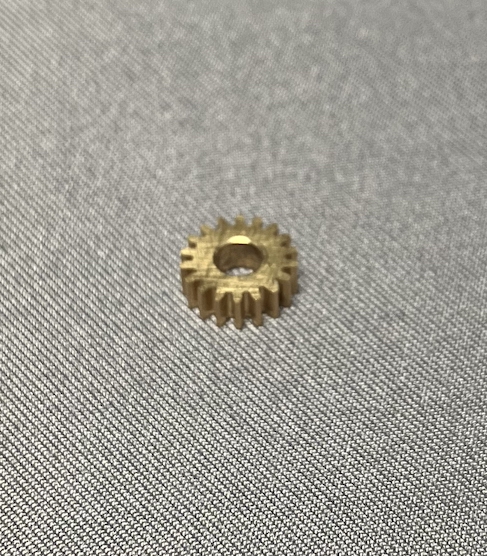

Accurascale 57xx ‘Pannier’ Final Drive Gear
Price shown is each
£12.00
Rapido

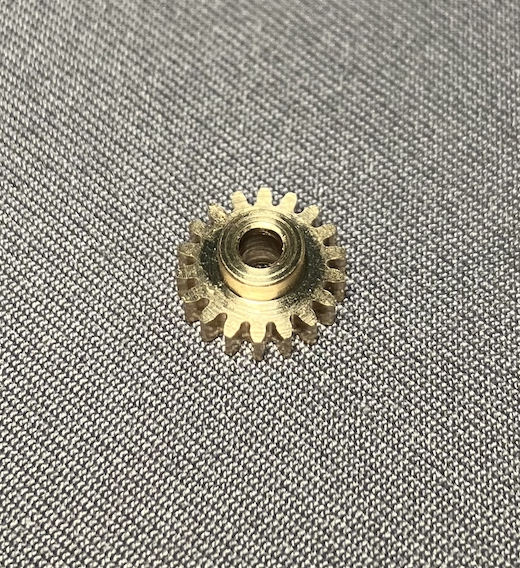

Rapido 44xx Final Drive Gear
Price shown is each
£12.00
Please note that other RTR gears are available and will be added to the web site as time allows. These include gears for Hornby, Bachmann, Accurascale, Rapido. If you can not find what you are looking for please ask.
Bespoke Spur Gears and Pinions
Bespoke Spur Gears can be supplied in the following tooth sizes:
Module: 0.2, 0.3, 0.4 & 0.5
Diametral Pitch: 40, 48, 52, 60, 96 & 100
From left to right and top to bottom.
Heljan Class 47,33 etc.
Bachmann Class 08 Diesel shunter, 8750 etc.
RG4 final drive gear.
Hornby Class 08 Diesel shunter.

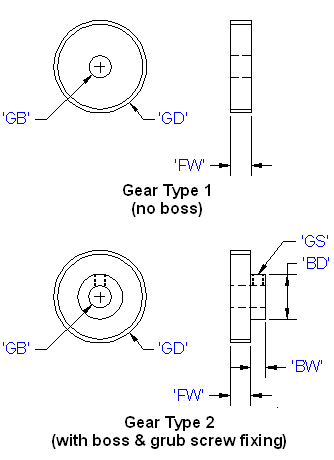

Key:
Gear Diameter – ‘GD’
Gear Bore – ‘GB’
Face Width – ‘FW’
Grub Screw – ‘GS’
Boss Diameter – ‘BD’
Boss Width – ‘BW’
Spur Gear and Pinion Calculations can be found here.
Bespoke Helical Gears
Bespoke Helical Gears can be supplied in the following tooth sizes:
Module: 0.2, 0.3, 0.4 & 0.5
Diametral Pitch: 40, 48, 52, 60, 96 & 100
From left to right.
40:1 gear set single start with 2.0mm bore worm and 3/16″ bore worm wheel.
13:1 gear set two start with 3/32″ bore worm and 9/64″ bore worm wheel.
Please note that only the 0.4module and the 100 DP tooth sizes can be supplied with worms. For available worms see below.
Key:
Gear Diameter – ‘GD’
Gear Bore – ‘GB’
Face Width – ‘FW’
Grub Screw – ‘GS’
Boss Diameter – ‘BD’
Boss Width – ‘BW’
Worms
Specific Gear Data:
| Tooth | ‘WD’ | ‘WL’ | ‘WB’ | Worm | Number |
| Size | Worm Dia. | Worm Length | Worm Bore | Material | of Starts |
| 100 DP | 0.141″ [3.58mm] | 0.375″ [9.53mm] | 1.5mm, 1.8mm or 2.0mm | Nylon | 1 |
| 100 DP | 0.189″” [4.80mm] | 0.375″ [9.53mm] | 1.5mm, 1.8mm, 2.0mm or 3/32″ | Nylon | 1 |
| 100 DP | 0.189″ [4.80mm] | 0.195″ [4.95mm] | 1.0mm, 1.5mm, 1.8mm, 2.0mm or 3/32″ | Nylon | 1 |
| 0.4 MOD | 0.250″ [6.35mm] | 0.375″ [9.53mm] | 1.5mm, 1.8mm, 2.0mm or 3/32″ | Nylon | 1 |
| 0.4 MOD | 0.250″ [6.35mm] | 0.375″ [9.53mm] | 1.5mm, 1.8mm, 2.0mm or 3/32″ | Nylon | 2 |
Additional Information/Options:
- Worms are manufactured from either injection moulded Nylatron GS, unless otherwise indicated.
- Product Specific Information/Options can be seen by clicking on the product description.
- All worms are single start unless otherwise indicated.
